Fittings and Tubing: Gland/Collar

COLLAR HP

Collars have reverse threads. They often seize to the ends of tubing or nipples. When installing use blue goop and leave 2-3 threads exposed on the coned end before inserting to the fitting and tightening the gland. Don't forget the gland nuts! 1/4" gland is P0162; 3/8" is P0163; 9/16" is P0164.
    Manufacturer
  • BYSTRONIC
  • CROSS PLATFORM
  • FLOW
  • IWP
  • JET EDGE
  • KMT
  • OMAX
  • OTHER
  • WSI

F300-P0168-0000 replaces:
$5.00

Engineering Title(s):

  • F300-P0168-0000: COLLAR, HP, 1/4''

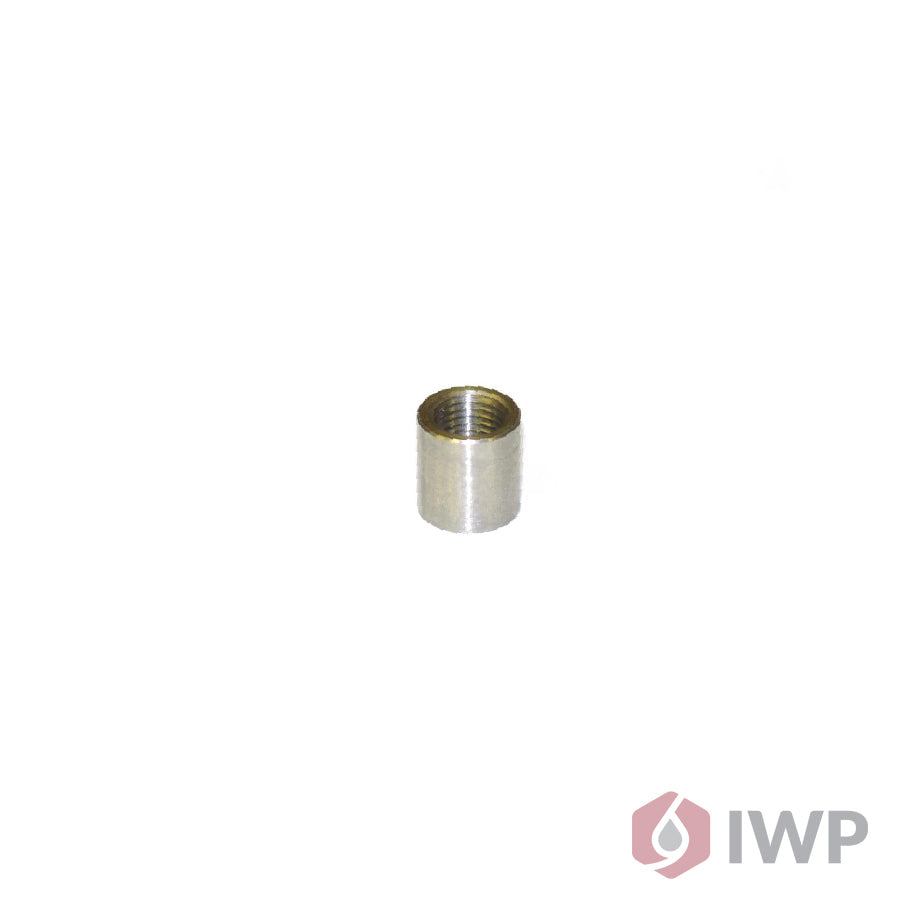

  • F300-P0169-0000: COLLAR, HP, 3/8''

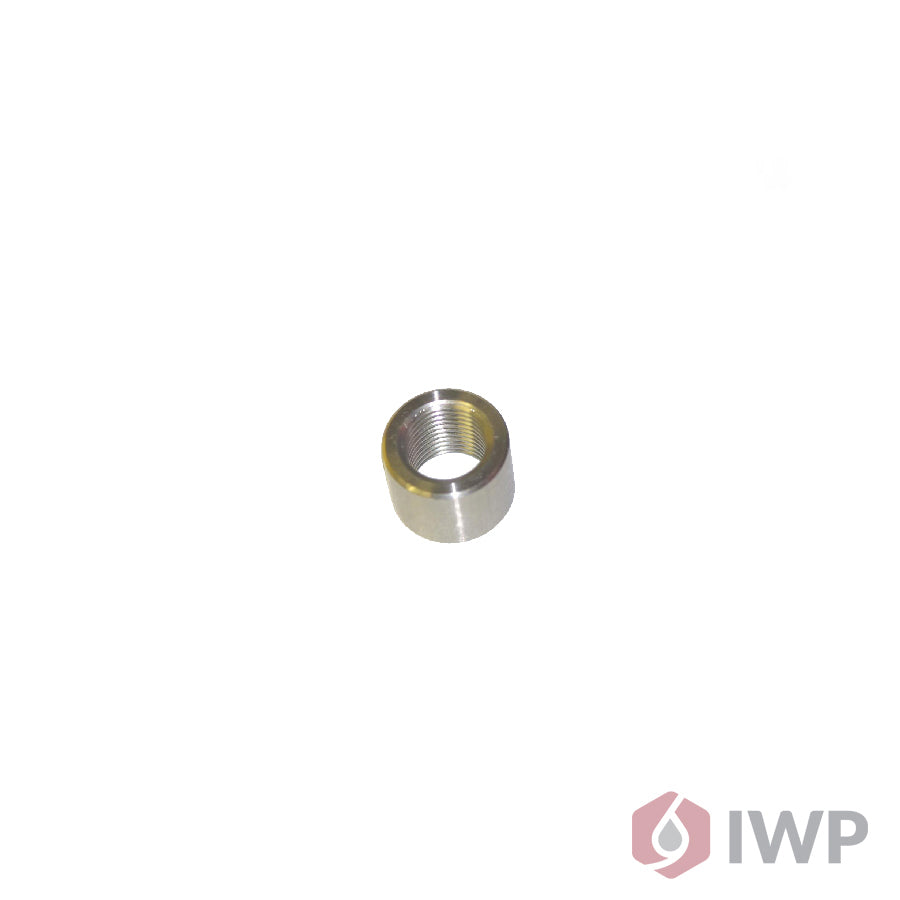

  • F300-P0170-0000: COLLAR, HP, 9/16''
